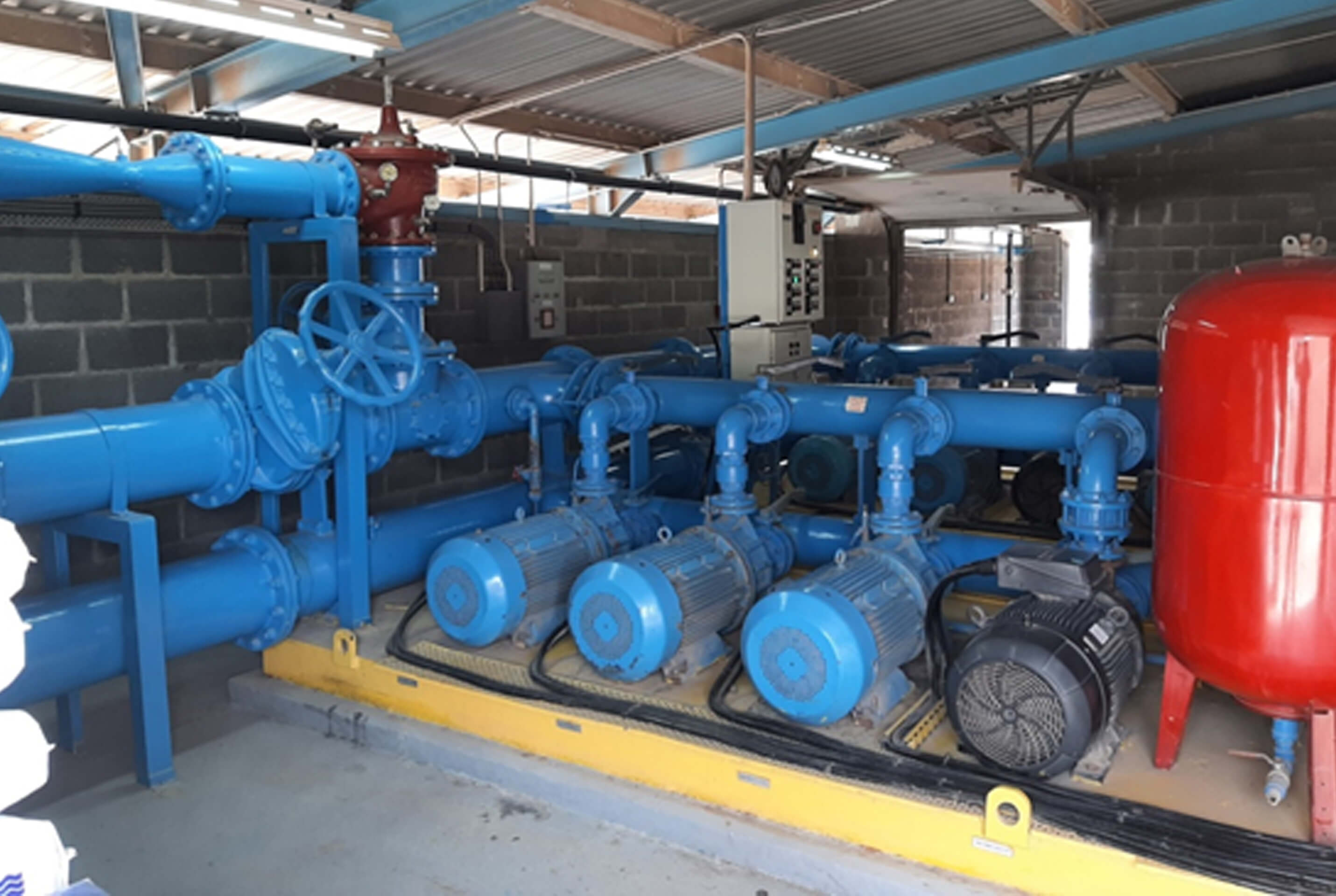

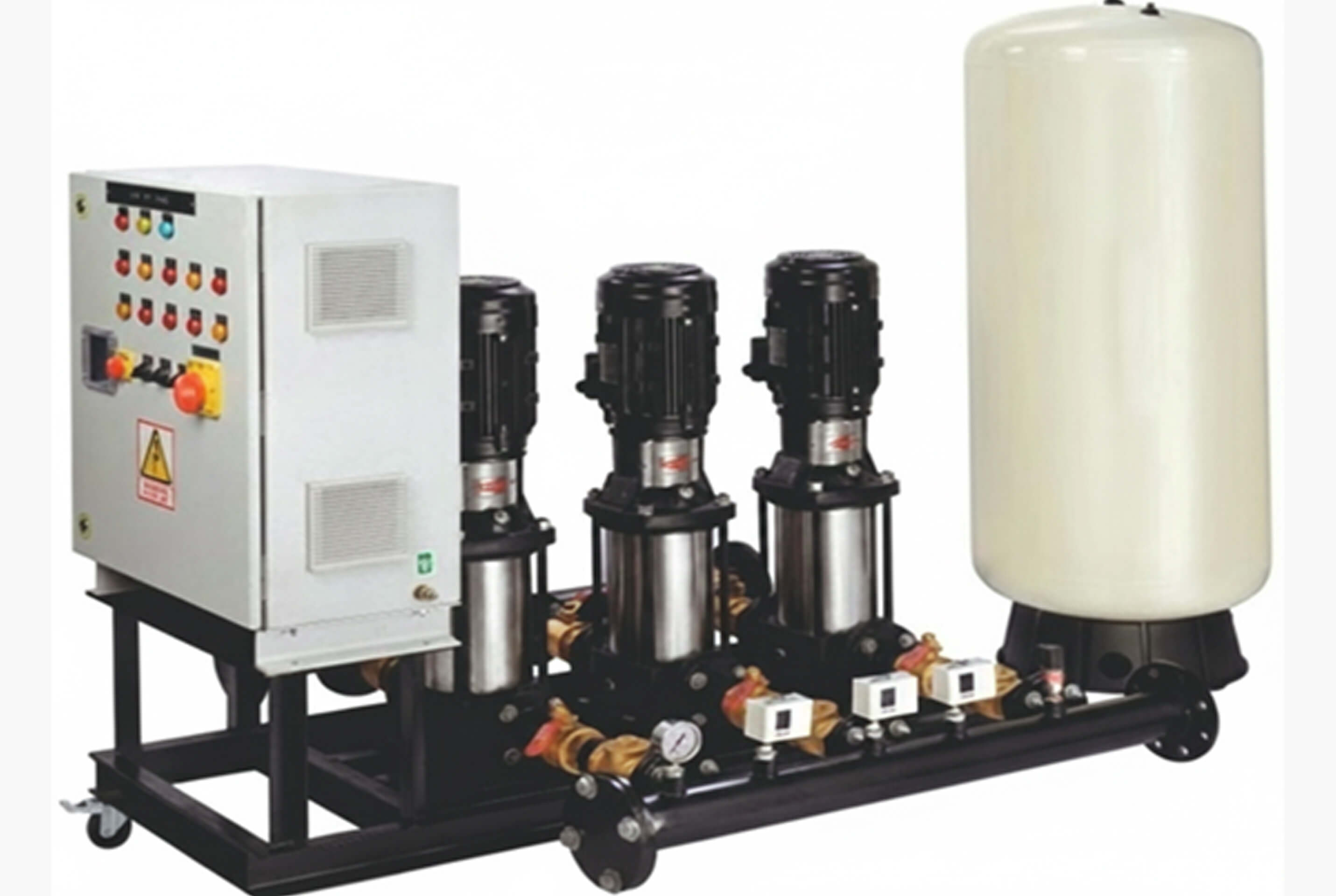

Hydro Pneumatic Pressure Booster System

High-Performance Hydro Pneumatic Booster Systems

A Hydro Pneumatic Pressure Booster System is an integrated pressure control system designed to maintain uniform and reliable water or fluid pressure using a combination of hydraulic and pneumatic force. This mechanism generally includes a pump set, pressure tank, control panel and sensing instruments that work together to stabilize pressure levels in pipelines and distribution networks. In a typical water pressure boosting system, the pump operates according to preset pressure settings, while the pressurized air cushion within the tank helps absorb demand variations and stabilize pressure. As a result, the hydro pneumatic pump system with VFD control delivers smooth, consistent pressure at outlets without the need of frequent manual intervention.

From a functional perspective, a hydro pneumatic pressure booster system is configured with automatic controls, water head sensing devices and protection features that help safeguard the pipeline network. The control logic manages pump sequencing, dry run protection, overload control and pressure cut-in / cut-out settings through an electrical or electronic control panel. These systems can be designed as single-pump or multi-pump industrial hydro-pneumatic tank and pump system packages to handle different building sizes, load patterns and service requirements.

Water and Wastewater Treatment Trading and Contracting Company, based in Qatar, offers engineered commercial hydropneumatic pressure boosting solutions with site-specific design, installation and commissioning support. The company serves customers across Doha, Riyadh, Dubai and key regions throughout the UAE with a focus on reliable performance, after-sales support and periodic maintenance for pressurized water distribution setups. For project inquiries, design consultation or pricing details, you can contact our team to get customized commercial hydro-pneumatic pressure boosting solutions and professional guidance for your next installation.

Advantages :

•  Stable Water Pressure : A hydro pneumatic pressure booster system provides continuous water pressure at all outlets, even during peak usage periods.
•  Optimized Energy Consumption : Intelligent hydro pneumatic booster controls and pressure sensing help reduce pump running time, supporting energy-efficient operation.
•  Automatic Pump Control : The VFD booster pump system uses automated start - stop logic to manage multiple pumps smoothly without manual intervention.
•  Reduced Pump Cycling : The integrated pressure tank in a domestic water boosting system minimizes frequent pump cycles.
•  Protection for Plumbing Network : Controlled pressure from a maintenance-free hydro-pneumatic booster system helps safeguard pipelines and fixtures.
•  Flexible System Integration : A residential water pressure solution can be configured for new projects or retrofits.
•  Improved User Convenience : Users experience uniform flow and pressure, improving comfort in daily water usage.
•  Low Operational Oversight : Automatic monitoring in modern energy-efficient booster systems reduces the need for supervision.

Applications :

•  Residential buildings
•  Commercial buildings, malls, hotels, resorts
•  Industrial facilities
•  Agricultural irrigation and farms
•  Offices, schools, hospitals
•  Rooftop tank, borewell and municipal inlet boosting

Technical Specifications :

•  Model / Series : HPBS 200, HPBS 500, HPBS 1000, with customised configurations for larger commercial and industrial requirements.
•  Flow Rate : 10 to 150+ m³/hr, depending on model and site demands.
•  Maximum Head / Pressure : 20 to 250+ metres, varying by pump type.
•  Operating Pressure Range : 2.5 bar to 16 bar.
•  Pressure Tank Capacity : 50 to 5000 litres, with larger commercial volumes available.
•  Pump Power : 1.5 kW to 135 kW, equipped with VFD for efficient speed regulation.
•  Electrical Supply : 220 - 240V single-phase; 380 - 415V three-phase; 50/60 Hz.
•  Material of Construction : Pump (SS/Cast Iron), Tank (steel), Bladder (EPDM/NBR).
•  Noise Level : ≤ 70 dB with low-noise VFD-driven models.
•  Warranty : 1 year on pump/motor, 1 year on electronic controls.
•  Certifications : CE, ISO 9001 and local approvals.
