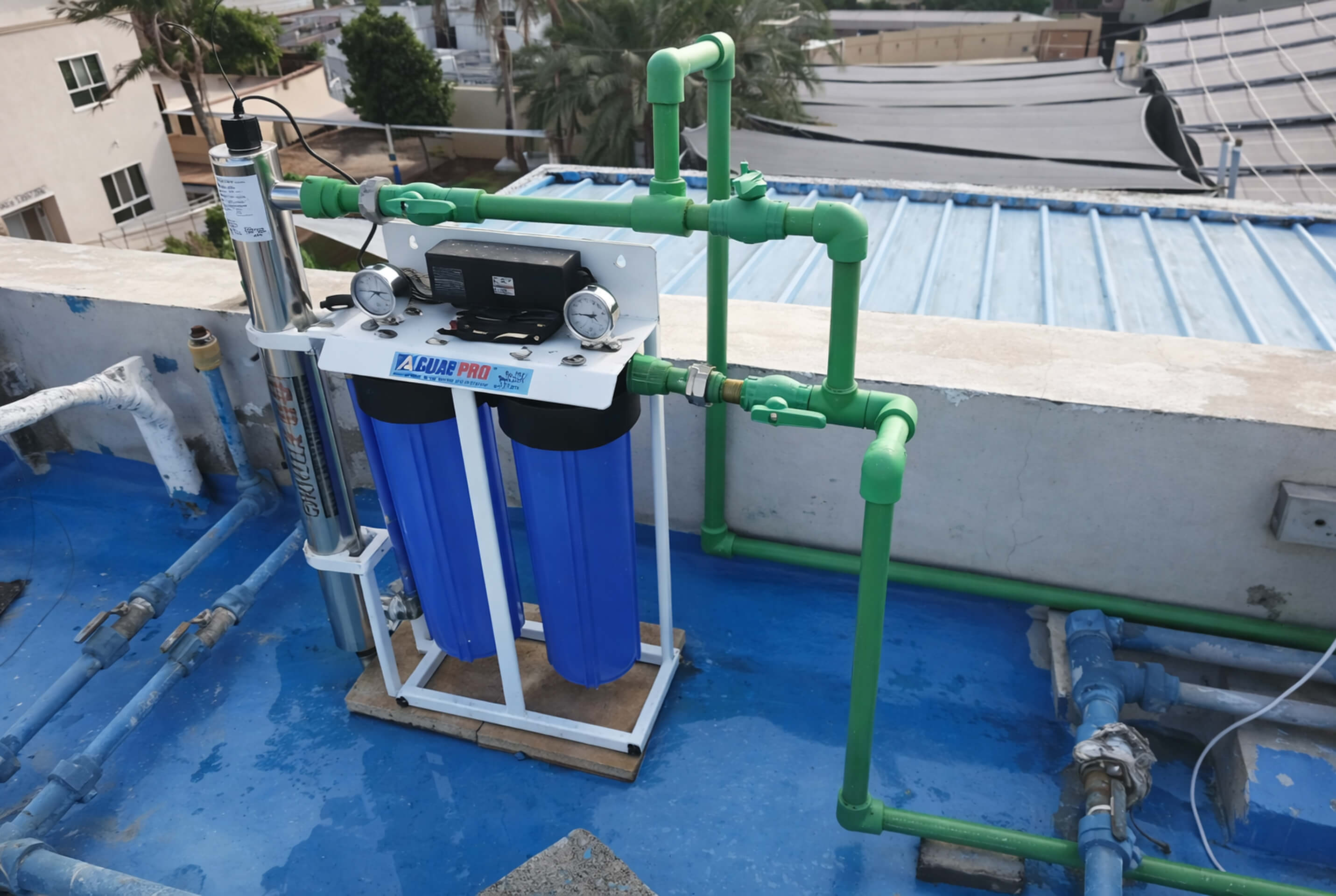

Jumbo Water Filters with UV Steriliser

Jumbo Water Filters with UV Steriliser for High-Flow Systems

Jumbo water filters with UV steriliser represent a comprehensive water treatment solution that combines mechanical filtration with ultraviolet disinfection technology. These large-capacity water filtration systems are manufactured to handle substantial flow rates while ensuring microbiological safety through UV water sterilization. The jumbo filter housing accommodates oversized cartridges which typically range from 10 to 20 inches in diameter and 20 to 40 inches in length, thereby enabling high-flow water purification without frequent maintenance interruptions. The dual-stage purification process begins with mechanical filtration, where jumbo cartridges remove sediment, rust, chlorine and particulate matter down to 5 microns or finer. Following filtration, water passes through a UV sterilisation chamber equipped with germicidal lamps emitting 254-nanometer wavelength radiation. This ultraviolet water treatment effectively neutralizes bacteria, viruses and other pathogenic micro-organisms without introducing chemicals, maintaining natural water taste and pH balance.

Industrial water filter systems with UV sterilisers operate on continuous-flow principles, with stainless steel or reinforced polypropylene housings ensuring durability under varying pressure conditions. The UV disinfection unit features quartz sleeves protecting the lamp while allowing maximum UV transmission, with electronic ballasts providing stable power delivery. Flow rates vary from 50 to 500 litres per minute depending on configuration, making these systems suitable for commercial water purification requirements

Water and Waste Water Treatment Trading and Contracting Company, based in Qatar and actively serving Doha, Riyadh, Dubai and other major Gulf regions, specializes in the manufacturing and supply of jumbo water filters with advanced UV sterilisers, premium shower filters, ozonation systems and a wide range of water treatment products.

Reach out today for customised high-volume water treatment systems crafted to meet your exact performance and purity requirements.

Advantages of Jumbo Water Filters with UV Steriliser :

•  High-flow water purification capacity handles 50-500 litres per minute, ensuring uninterrupted supply for large-scale requirements.
•  Dual-stage filtration with UV disinfection removes sediment, chlorine and destroys 99.9% of bacteria, viruses and microorganisms without chemicals.
•  Extended cartridge life reduces replacement frequency due to jumbo-sized filter elements, lowering operational costs and maintenance downtime.
•  Continuous operation capability with robust stainless steel or polypropylene construction ensures reliable performance under varying pressure conditions.
•  Low energy consumption as UV lamps require minimal power while delivering effective germicidal action at 254nm wavelength.

Applications :

1. A) Residential and Whole-House Use :
   •  Whole-house / point-of-entry filtration for villas and large residences.
   •  Suitable for duplexes, multi-family units and high-occupancy homes.
   •  Ideal for areas with tank, well or borewell water containing microbial risks.
   •  Commercial and Light Industrial Applications.
   •  Offices, clinics, laboratories and research facilities requiring hygienic water.
   •  Light commercial establishments such as guesthouses, hostels, cafes and boutique hotels.
   •  Commercial kitchens, food prep areas and environments demanding safe, disinfected water.
2. B) Water Treatment and Pre-Filtration :
   •  Acts as an effective pre-treatment stage before RO (Reverse Osmosis) systems.
   •  Supports UV-based disinfection for tank-fed or rural water supplies.
3. C) New Installations and Retrofits :
   •  Suitable for new plumbing layouts as well as existing system upgrades.
   •  Easily integrated into large-scale filtration setups or refurbishment projects.

Technical Specifications :

1. A) Filter Housing and Build :
   •  Housing Dimensions : 20″ × 4.5″ Jumbo (model-specific)
   •  Construction Materials : Heavy duty reinforced polypropylene housing with UV-grade stainless steel chamber.
   •  Port Connections : 1″ / 1.5″ NPT or BSP options for which customised connections are available.
2. B) Filtration Performance :
   •  Micron Grade Options : 1 µm, 5 µm, 10 µm and 20 µm (based on cartridge selection)
   •  Flow Capacity : 6– 12 GPM, for which higher flow is achievable with dual-jumbo + UV configurations.
   •  Operating Pressure Range : 90 PSI to 150 PSI.
   •  Operating Temperature : Up to 45°C.
3. C) UV Sterilisation Parameters :
   •  UV Lamp Power Options : 30 W / 55 W, being model dependent.
   •  Chamber Construction : Stainless steel UV reactor or quartz-lined UV chamber
   •  Lamp Lifespan : Approx. 9,000 hours (~1 year of typical operation)
4. D) Warranty and Support :
   •  Warranty Coverage : 6 months to 1 year on housing, UV components and accessories.
